Slim

Thinnest touch frame for
displays from 10″ to 40″

Overview

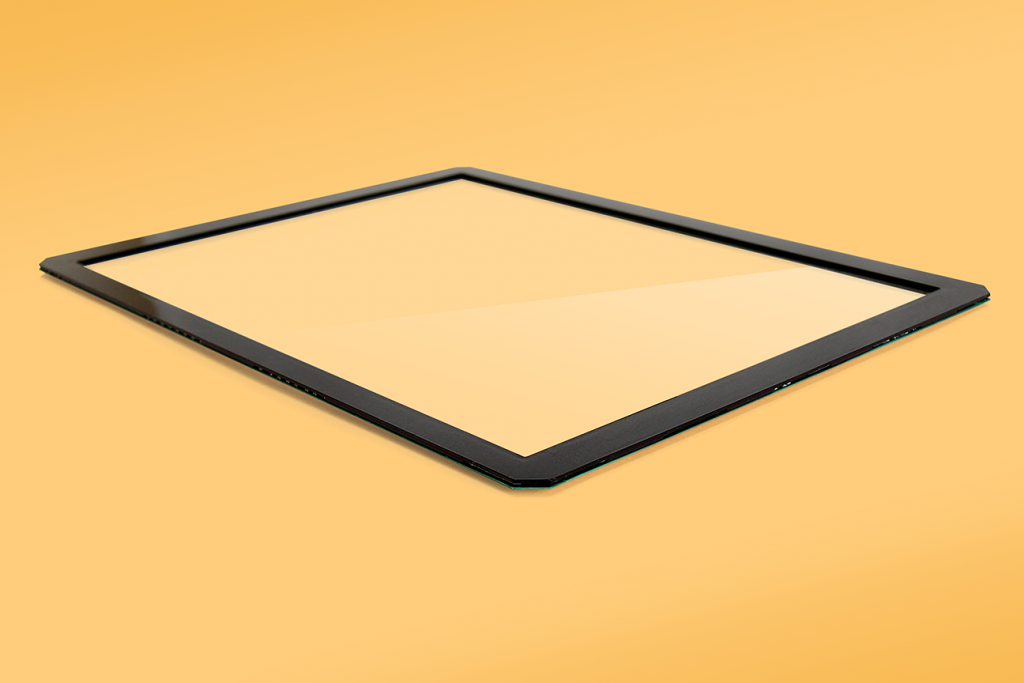

Measuring just 3.2 mm from glass to frame surface, the ShadowSense Slim is the thinnest multi-touch frame on the market.

Combining the industry proven performance of ShadowSense with a minimalist bezel design allows the Slim Touch to be utilized in multi-touch applications typically exclusive to projective capacitive technology.

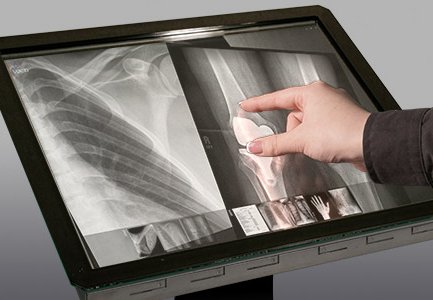

Targeted at embedded applications in automotive infotainment systems, industrial automation controls, medical imaging displays and other performance critical uses, the worldwide agency approvals and certifications simplify your integration and product approval efforts.

Features

Driverless Interface

• Windows® 7,8, and 10 compliant packet formats
• No drivers or CPU based algorithms

Custom Class Options

• 3 mm tempered glass with 91% optical clarity

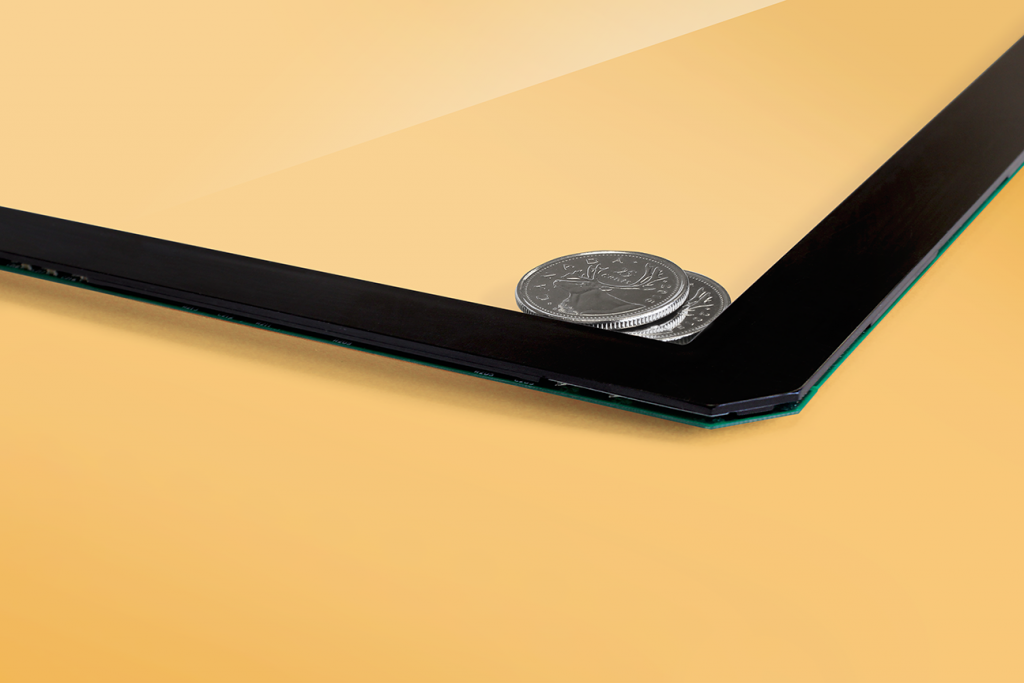

• Slim 3.2 mm glass to frame surface

Fully Featured

• Real-time touch area data provided for all touch points
• Senses solid objects 4 mm or greater in diameter
• Static object detection and rejection, continues to function with debris on the screen

High Performance

• Sub- 10 ms response time
• Sub-2 mm touch point accuracy
• No ghosting or dead zones
• Outstanding ambient light rejection up to full sunlight (10,000 foot candles)

Specifications

TEMPERATURE

Operating: 0°C to +70° (contact us for commercial and industrial operating temperatures)
Non-Operating: <-20°C to >80°C

HUMIDITY

Operating: 5% to 90% RH non-condensing
Non-Operating: 5% to 90% RH non-condensing

ALTITUDE

Operating: Sea level to 10,000 feet
Non-Operating: Sea level to 30,000 feet

0 0
MECHANICAL OVERVIEW

See Product Briefs for the mechanical dimensions of each frame size available

OPERATING SYSTEM

Windows 10/8/7 (including embedded versions)
Mac OS X
Linux (Ubuntu, Fedora)
Android

RANGE OF SIZES

Available in 10“, 13“, 15“, 19“, 21“, 22“, 23“, 23.8“, 24“, 27“, 31.5
