ShadowSense™ PRO

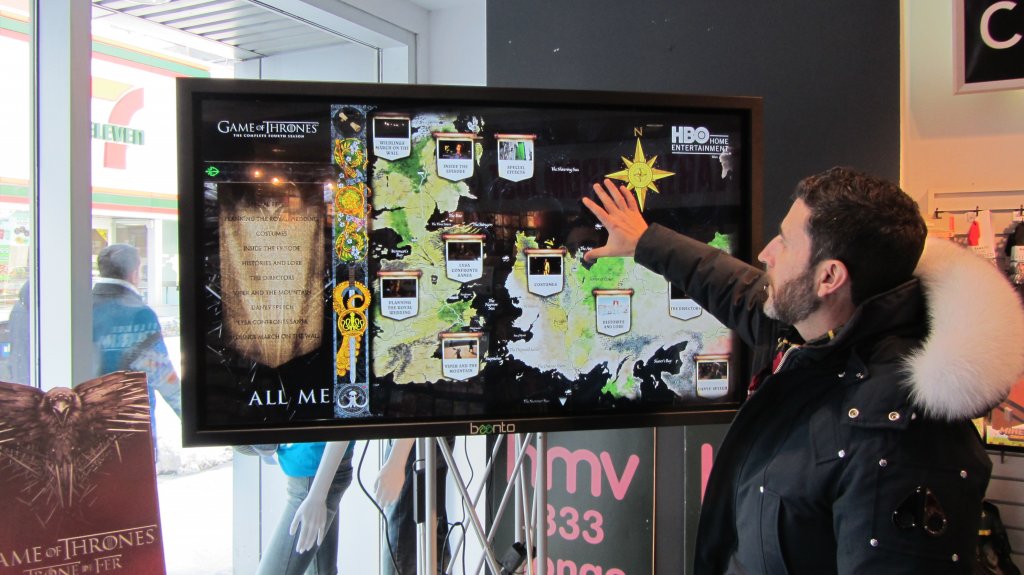

Baanto ShadowSense based touchscreens deliver innovative, high performance multi-touch capabilities for large format displays. This is the perfect multi-touch solution for digital out-of-home (DOOH), interactive signage and other large format interactive applications. In addition, over-sized frames are available for business and learning environments that require full Windows® 10 compatibility for edge swipes (Charms) and native support for pen computing applications.

ShadowSense requires no drivers or touch detection applications running on the host CPU making this technology an outstanding solution for cost sensitive applications using low power CPU’s and media players.

Baanto-ShadowSense-Pro

ShadowSense™ PRO Features

High performance 10 touch system
  • Sub-10 ms response time
  • Sub-2 millimeter touch point accuracy
  • 4K (4096×2160) touch resolution
  • No ghosting or dead zones
  • Outstanding ambient light rejection up to full sunlight (10,000 foot candles)
  • Continues to function with debris on the screen

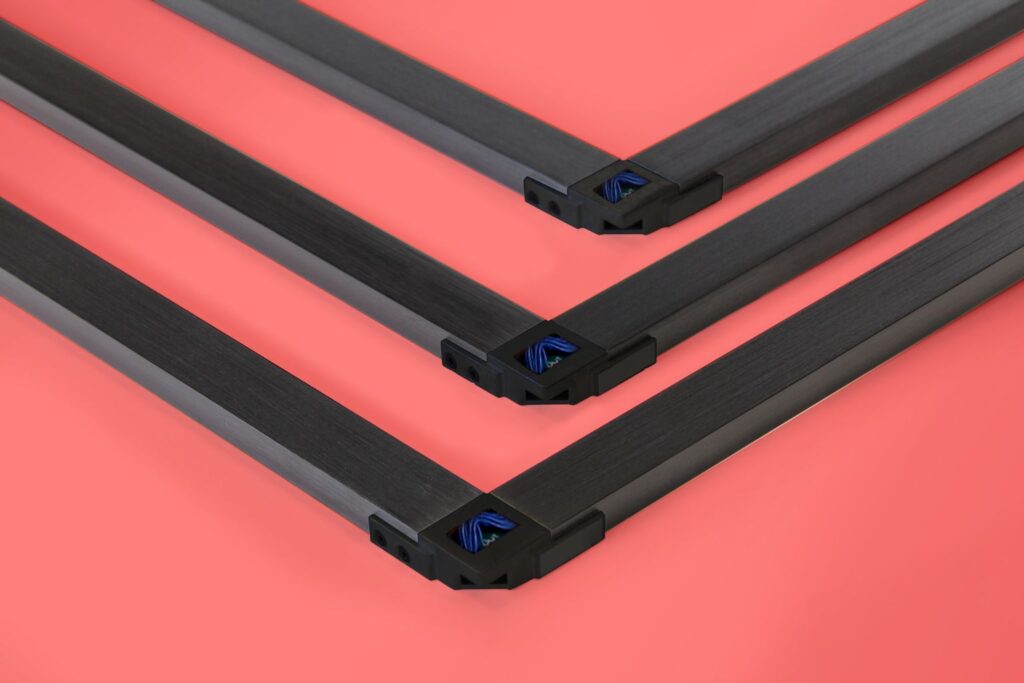

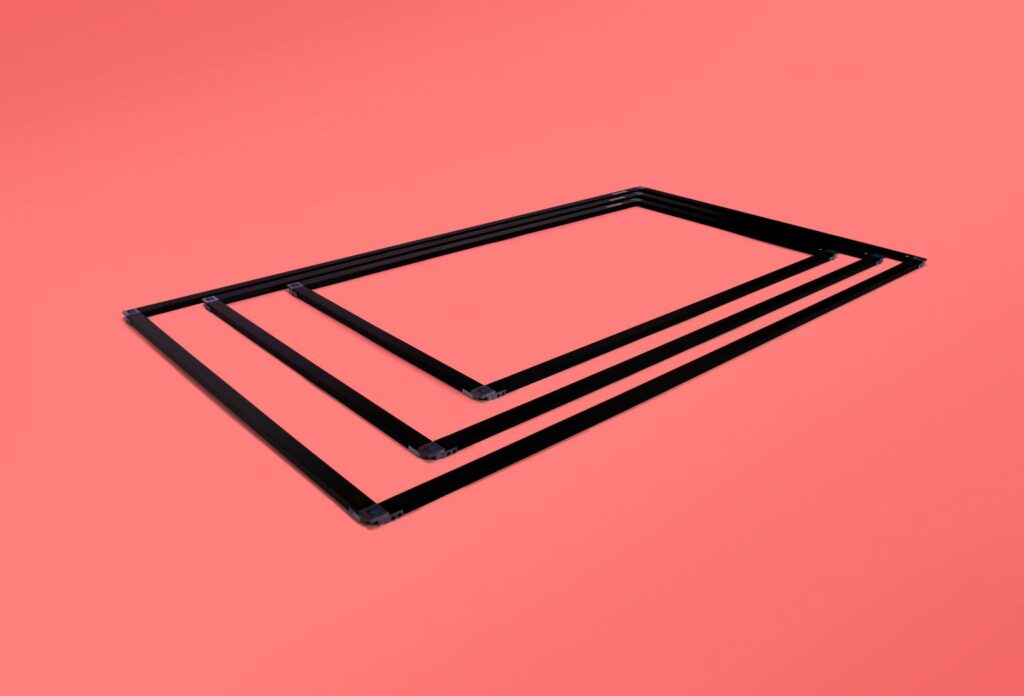

Rigid Frame Design
  • Simplified Integration
  • Calibration Free
  • Mechanically and thermally stable
Note: ShadowSense PRO frame do not include glass. The protective glass is added during the integration process.
Highly Configurable
  •  Configure for single touch, multi touch and even simple mouse mode
  • Touch rejection based on hover and size
  • Windows charms support and touch zone support
  • Real-time touch area data provided for all touch points
  • Senses solid objects 4 millimeters or greater in diameter
  • Static object detection and rejection
  • Configurable hover distance for touch detection
  • Configurable spurious touch and palm rejection
  • Configurable pen and eraser recognition
Driverless Interface
  • Windows® 7,8, and 10 compliant packet formats
  • No drivers or CPU based algorithms

ShadowSense™ PRO Datasheets

55" PRO Datasheet
65" PRO Datasheet
75" PRO Datasheet
85" PRO Datasheet
98" PRO Datasheet

ShadowSense™ PRO Specifications

Temperature

Operating: -10°C to +70° (If your requirements exceed these limits consult your Baanto sales representative for information on commercial and industrial operating temperatures)
Non-Operating: -20°C to 80°C

Humidity

Operating: 5% to 90% RH non-condensing
Non-Operating: 5% to 90% RH non-condensing

Altitude

Operating: Sea level to 10,000 feet
Non-Operating: Sea level to 30,000 feet

Mechanical Overview

See Product Briefs for the mechanical dimensions of each frame size available

Operating System
  • Windows 10/8/7/XP (including embedded versions)
  • Mac OS X
  • Linux (Ubuntu, Fedora)
  • Android
