Modular

Most versatile touch technology
for displays over 100″

ShadowSense Logo

Modular

Most versatile touch technology
for displays over 100″

The Video Wall, Simplified.

In the past, traditional video walls have been a difficult and costly task from shipping, to installation, through to possible replacements. ShadowSense Modular simplifies the video wall experience. SST Modular is the industry’s first and only truly Modular video wall solution. Our patented design is simple, adaptable to any size or shape, and gets rid of video wall problems of the past. No need to ship large, custom frames. ShadowSense Modular will save you time and money in all stages of the process.

Glass Solutions

Interactive Video Walls require glass protection to prevent damage to the LCD. Single sheet glass solutions can be cumbersome and expensive. Learn how ShadowSense Modular solutions can dramatically reduce your costs.

Retrofitting Video Walls

Are you struggling to find the most efficient way to upgrade your existing Video Wall to be touch interactive? ShadowSense Modular is the most adaptive, customizable, ideal option for updating Video Walls.

SST Brackets

Are you looking to take your blended projection wall to the next level with cutting edge interactivity? ShadowSense Modular is the best option for your installation.

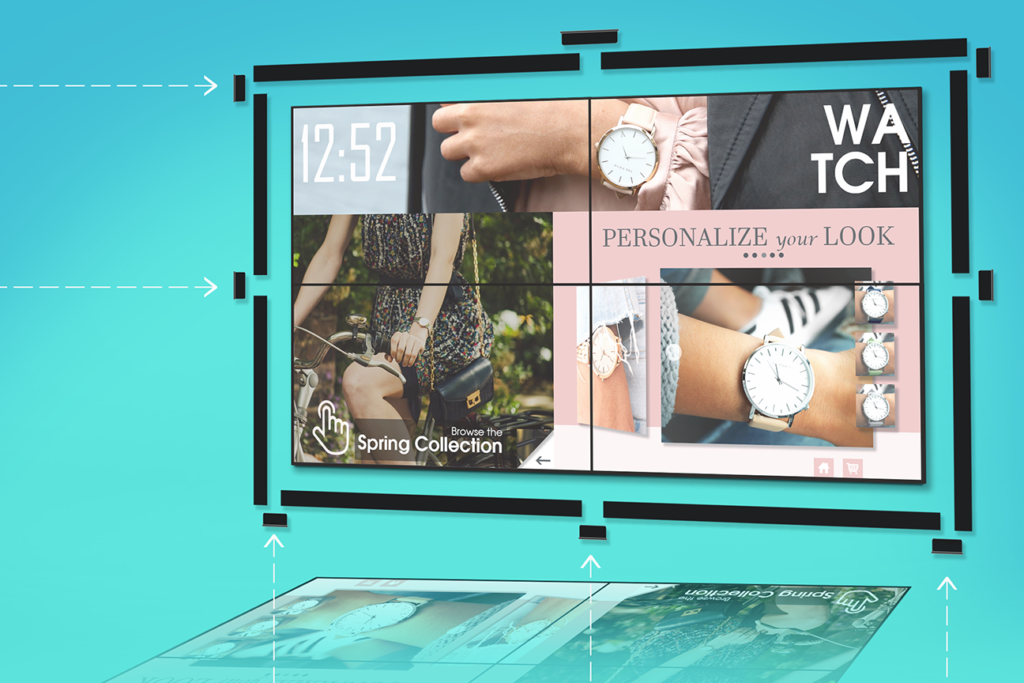

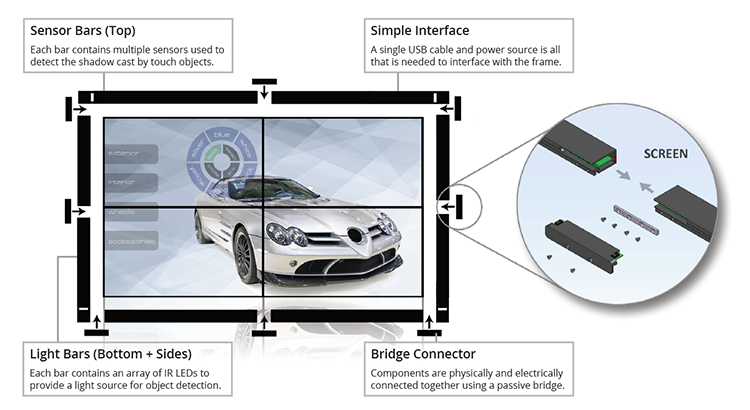

The ShadowSense Modular Touch System

Using patented ShadowSense technology, the Modular Touch System is the industry’s first and only truly modular solution that allows frames of any size to be assembled, providing high performance multitouch capabilities to video walls composed of thin bezel displays, and LED panels.

No more costly installation and service calls. The Modular Touch System is field-installable, requiring minimal tools. The touch frame is separate from the glass so each piece can be removed and replaced without affecting the rest of the system. What’s more, with native support for all major operating systems, it really is as simple as plug and play.

Targeted at command and control, broadcast studio, museum, corporate lobby, large retail, stadium and rental applications, the Modular Touch System makes it easy and cost effective to add a whole new dimension to your video display wall.

Features

Fast, Accurate, Repeatable

With sub-10 ms response times and sub-2 mm touch accuracy, every touch point is independently tracked to provide a seamless experience.

Easy Assembly

Components can all be assembled using just one tool. Servicing is made easy since individual pieces can be removed and replaced without disturbing the rest.

Ambient Light Immunity

Provides an unparalleled degree of immunity to high brightness and changing light intensities, even working in direct sunlight and studio environments.

Highly Scalable

Modular structure allows the frame to scale from a basic 2×1 configuration and beyond, both cost effectively and without sacrificing performance.

Palm Rejection

Sensing the size of an object permits control over what is recognized as a valid touch versus an unintentional touch, allowing for spurious touch and palm rejection.

U U
Comprehensive Diagnostics

Baanto Dashboard provides immediate feedback of LED functionality allowing for quick and easy troubleshooting, as well as remote monitoring.

Driverless Interface

Requires no drivers or touch detection applications running on the host CPU making it ideal for low power CPU’s and media players.

Product Documents

Find all product specifications, dimensions, and features for ShadowSense Modular in the files below.

Modular Installations

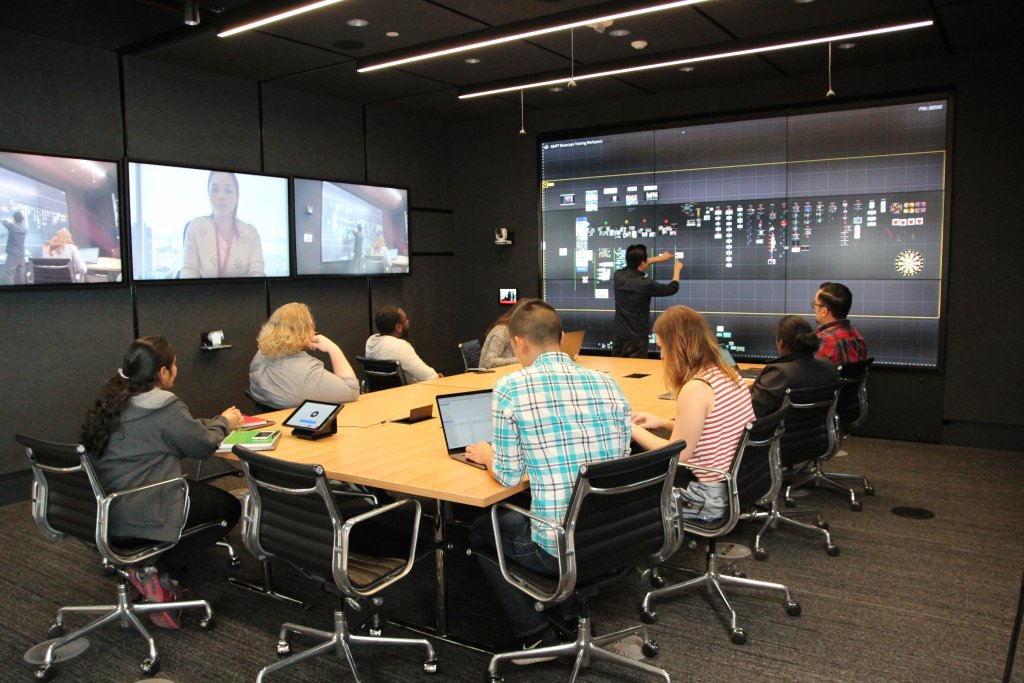

Optika Display Captivate Series

Canada, Germany, Malaysia, Switzerland, United States

Optika’s Captivate Series, powered by ShadowSense, has already been deployed in over a dozen locations globally including Silicon Valley, Toronto, Chicago, Dayton, Kuala Lumpur, Germany and Switzerland.

Premier organizations across the globe are looking to Optika and Baanto’s ShadowSense Modular to enable the next phase of Group Collaboration. The combination of premier technology performance and track record position Optika’s Captivate Series as a go-to touch wall solution globally.

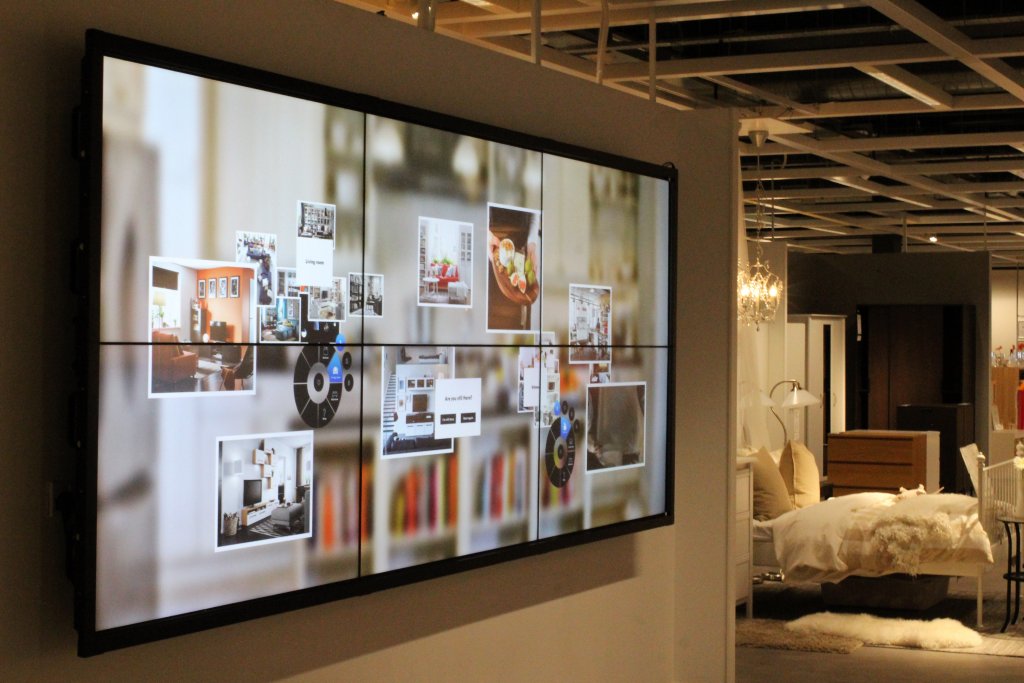

IKEA

United Kingdom & Ireland

In locations across the UK and Ireland, BeaverGroup entrusted Baanto’s Modular to make a multi-touch video wall that functions in a bright light environment.

The installation gives guests the opportunity to create a mood board for their own personal home projects. Pictures, interactive dials, and colour options work seamlessly with ShadowSense multitouch functionality for an intuitive and memorable experience.

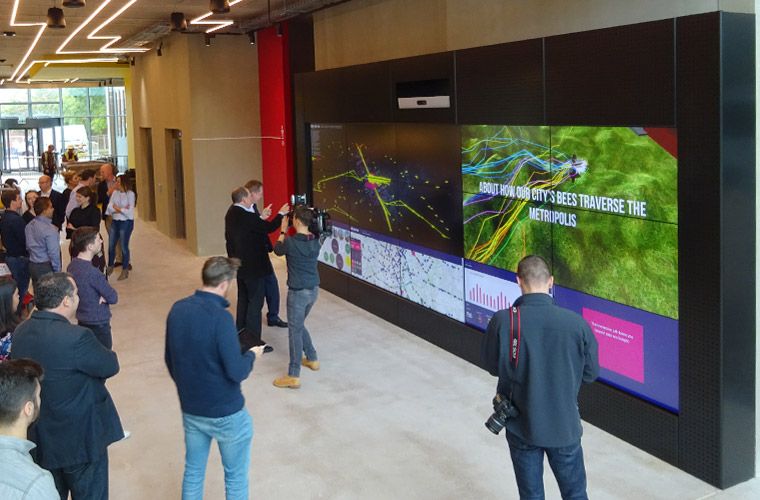

Cisco

Manchester, United Kingdom

Working with NEC displays and Saville Audio Visual, we created one of our biggest video walls for CityVerve. The installation was completed in less than a week.

The system was unveiled at the official opening of Bright Building at Manchester Science park. Users experience intuitive touch control for landmarks and locations on a dazzling 3 by 5 video wall display. Read more.

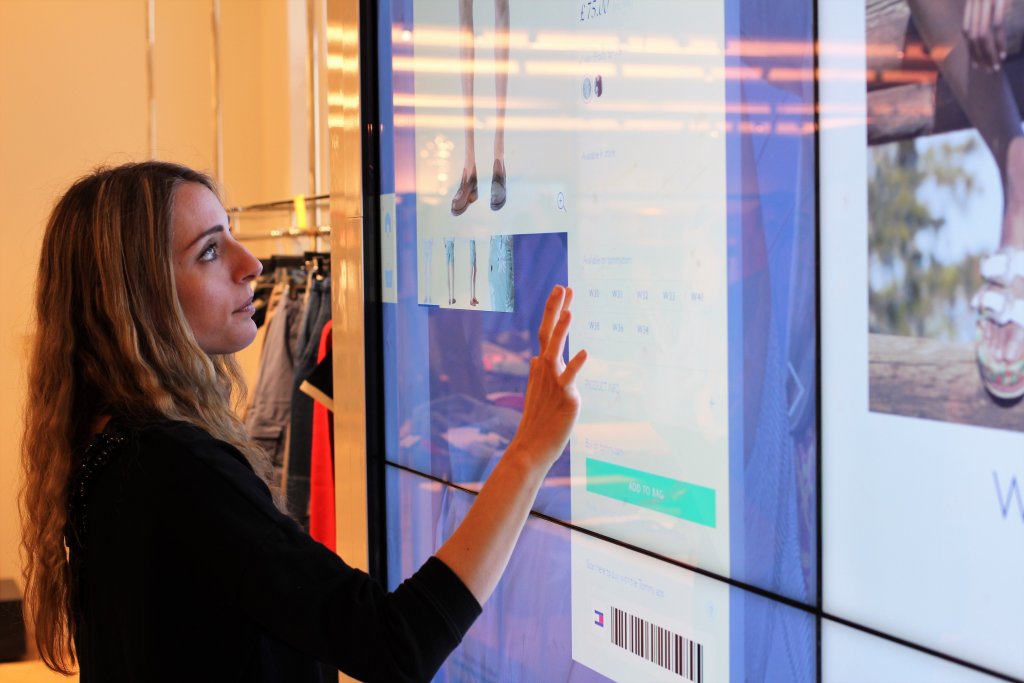

Tommy Hilfiger

London, United Kingdom

Tommy Hilfiger deployed Baanto’s Modular video wall across multiple European sites including the company’s flagship store in London.

2 x 3 and 3 x 3 display configurations were employed to deliver Tommy’s unique eye-catching content interactively and with sizzle.

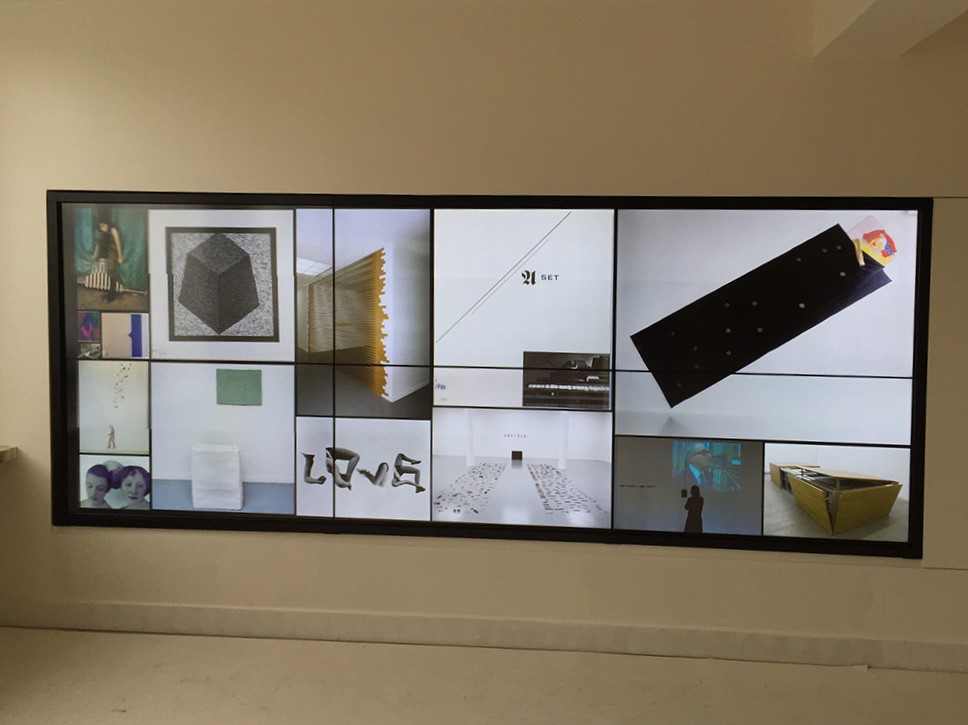

M HKA

Antwerp, Belgium

The Museum of Contemporary Art Antwerp was looking for a new video wall to welcome visitors with an engaging, interactive display. Working with Lab101, they integrated a large modular wall powered by ShadowSense technology. This large interactive wall allows many users to interact at once, exploring the museum archives of over 7,000 pieces of artwork, and 2,000 artists.



Click here to learn  more about the M HKA video wall powered by ShadowSense.

ShadowSense Modular Partners

Optika
TSI Touch
Panasonic
U-Touch
Prestop
Apek
NEC Europe
You Touch Technologies
NEC Australia
Questions about ShadowSense Modular?

We’d love to hear from you!
