ShadowSense™ SLIM

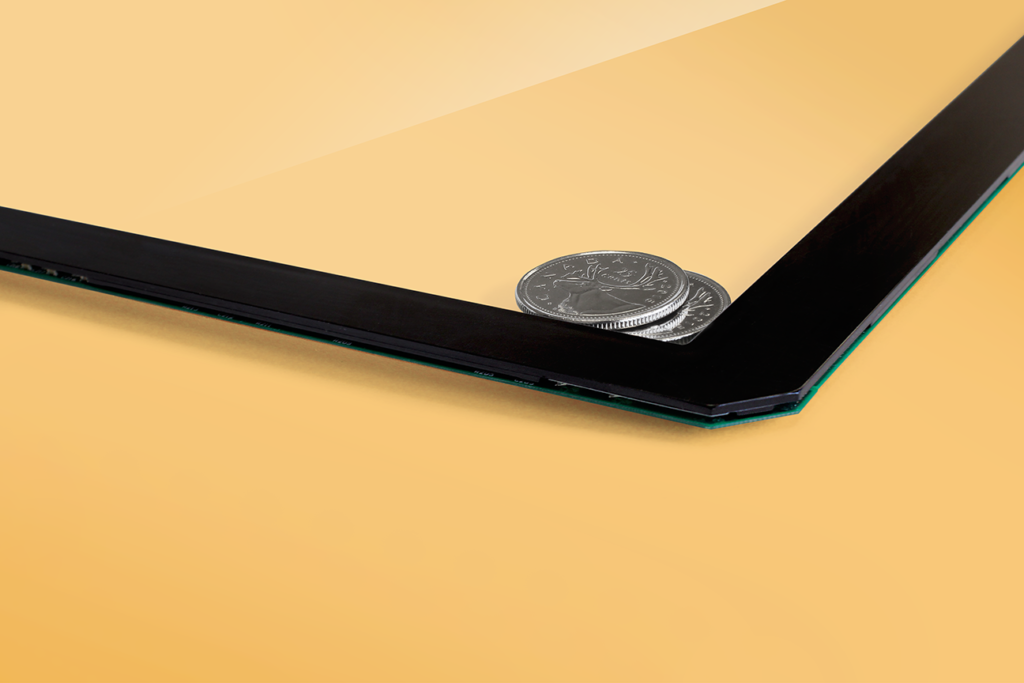

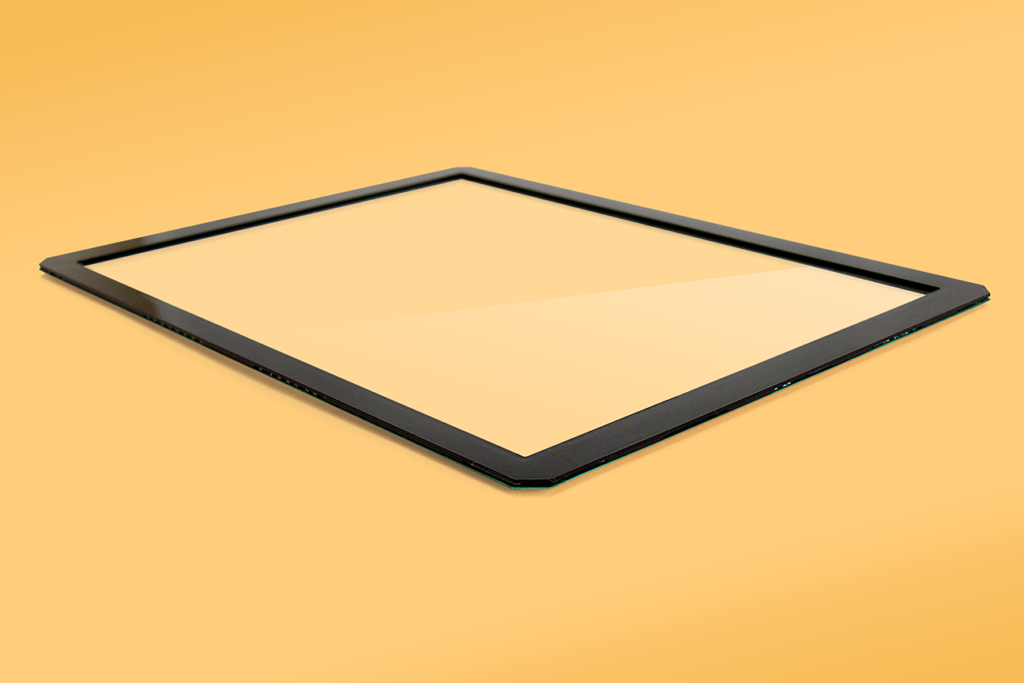

Measuring just 3.2 mm from glass to frame surface, the ShadowSense Slim is the thinnest multi-touch frame on the market.
Combining the industry-proven performance of ShadowSense with a minimalist bezel design allows the Slim Touch to be utilized in multi-touch applications typically exclusive to projective capacitive technology.

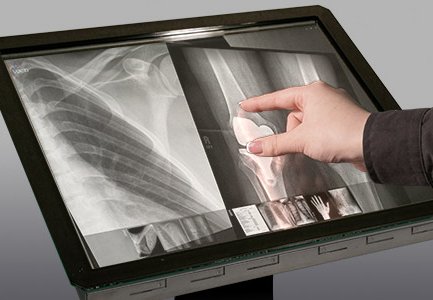

Targeted at embedded applications in automotive infotainment systems, industrial automation controls, medical imaging displays and other performance-critical uses, the worldwide agency approvals and certifications simplify your integration and product approval efforts.
ShadowSense™ SLIM Features
- Windows® 7,8, and 10 compliant packet formats
- No drivers or CPU based algorithms
- Real-time touch area data provided for all touch points
- Senses solid objects 4 mm or greater in diameter
- Static object detection and rejection, continues to function with debris on the screen
- 3 mm tempered glass with 91% optical clarity
- Custom AR\AG and other glass options available for ruggedized applications
- Slim 3.2 mm glass to frame surface
- Sub- 10 ms response time
- Sub-2 mm touch point accuracy
- No ghosting or dead zones
- Outstanding ambient light rejection up to full sunlight (10,000 foot candles)
ShadowSense™ SLIM Datasheets
ShadowSense™ SLIM Specifications
Temperature
Operating: 0°C to +70° (contact us for commercial and industrial operating temperatures)
Non-Operating: <-20°C to >80°C
Humidity
Operating: 5% to 90% RH non-condensing
Non-Operating: 5% to 90% RH non-condensing
Altitude
Operating: Sea level to 10,000 feet
Non-Operating: Sea level to 30,000 feet
Mechanical Overview
See Product Briefs for the mechanical dimensions of each frame size available
Operating System
- Windows 10/8/7/XP (including embedded versions)
- Mac OS X
- Linux (Ubuntu, Fedora)
- Android
